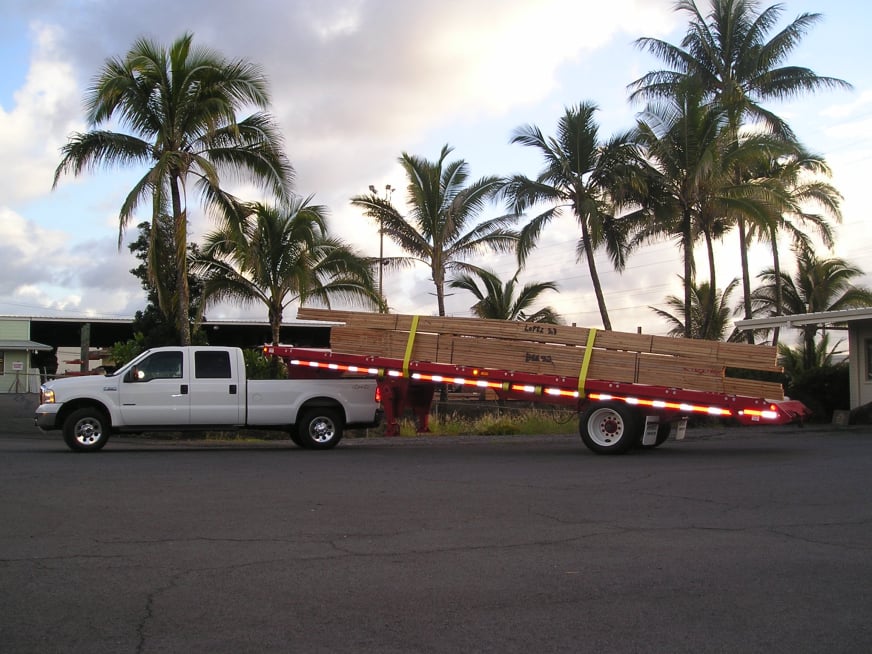

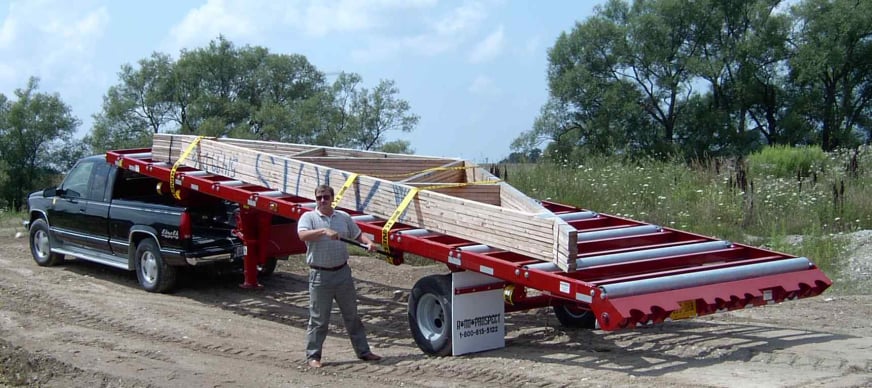

Our light roller trailers are perfectly suited for one-ton trucks. Designed for optimal balance and easy handling, they offer a practical and effective solution for transporting loads efficiently, ensuring a smooth and reliable experience for lighter vehicles.
Dimensions:
Length: 32'
Width: 102"
Height: 79 1/2"
Weight: Approximately 5,420 lbs
Under Carriage:
Axles: Dexter, 10,000 lbs @ 71"
Wheels: 8 stud steel
Brakes: 12.25 x 3.3" electric brakes
Air Chambers: Anchorlock 30-30
Suspension: Spring suspension
Tires: ST 235 80R 16
Rims: 8 hole 6.5 x 16
Decking:
Cross Sills: 4" Jr. I beam at 18" on center (O.C.) complete with diagonal bracing
Outer Rail: 5 3/4" x 3/16" formed channel

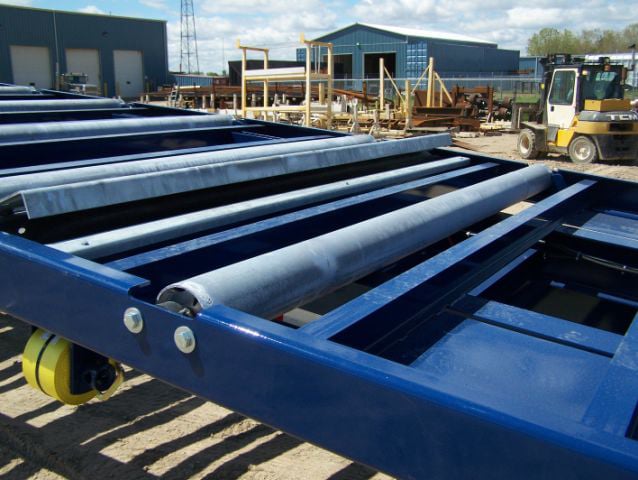

Deck Rollers: 5" x 3/16" x 98 3/4" tube complete with 1/4" axles and 2-bolt flange bearings, 36" O.C., mounted 3/4" above outer rail, zinc plated
Pick Up Plate: 1/4" plate, 48" high, 12" pin setting
Additional Equipment:
Roller Locks: Manually operated, 8 position ratchet style for quick release
Landing Gear: Holland MK-5, two speed, roadside crank
Main Beams: "I" beams 12 @ 14
Lights: LED
Straps: Sliding winches mounted on roadside track complete with straps and "D rings" to attach to curbside "J-hooks" for ease of operation
Paint: Sandblasted, primed, painted one color
Splash Guards: 12 gauge steel mounted over tires in road position complete with two rubber flaps
Mud Flaps: Two provided behind tandem
