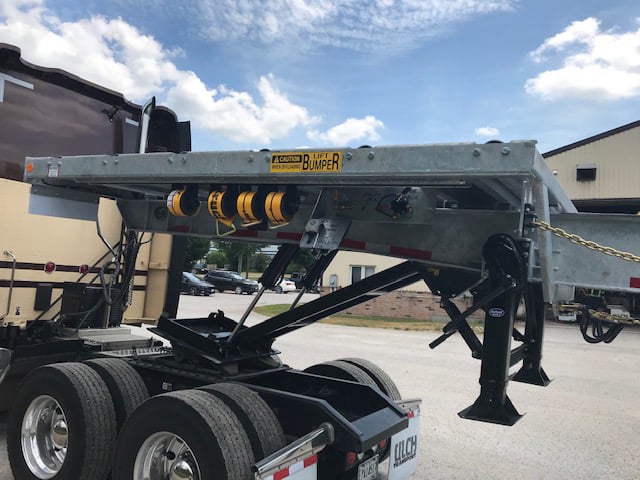

Our expandable trailers are specifically designed to facilitate the delivery of large trusses, making them ideal for both commercial and agricultural applications. These trailers effortlessly adjust to accommodate even the most substantial truss sizes, ensuring ease of transport and handling.
Dimensions:
Length: Available in 53'/77', 48'/70', 42'/60', and 36'/50'
Width: 102"
Height: 62" at the front of the deck
Weight: 22,000 lbs for 53'/77'; 22,500 lbs for 48'/70'; Gross Vehicle Weight Rating (GVWR) of 77,000 lbs
Under Carriage:
Axles: Dana D-22, 71" track, 5" diameter, 22,500 lb capacity, Haldex auto slacks
Wheels: 10 stud steel with outboard mount brake drums
Brakes: 16.5 x 7 x 3/4" Q-brake, CM-20 equipped with Anti-lock Brake System (ABS)
Air Chambers: Anchorlock 30-30
Decking:
Suspension: Hutch H-9700 spring or Ridewell air ride tandem at 49" spread. Features air-controlled suspension release for unloading
Cross Sills: 4" Jr. I beam at 12" on center (O.C.) complete with diagonal bracing
Outer Rail: 5 3/4" x 1/4" formed channel
Deck Plate: 11 gauge floor plate
Deck Rollers: Galvanized 5" x 3/16" x 98 3/4" tube complete with 1/4" axles and 2-bolt flange bearings, 24" O.C., mounted 3/4" above the outer rail
Additional Equipment:
Pick Up Plate: 1/2" plate, 49" high, 30" pin setting
Hydraulic Lift: Two 3.5" x 24" stroke double-acting cylinders with a 12 volt DC pump at 2 gallons per minute, onboard battery, 48" lift
Roller Locks: Air-powered, 8 position ratchet style for quick and hands-free release
Controls: Mounted roadside at landing gear
Ground Rollers: Two 14" x 3/8" wall complete with 1 1/2" axles
Landing Gear: Holland MK-5, two-speed, roadside crank
Main Beams: Fabricated "I" beams with 3/8" x 6" x 130,000 yield flanges and 3/16" webs
Lights: LED
Head Rack: Removable 48" x 96" complete with 1 1/2"-9 expanded metal
Paint: Sandblasted, primed, painted one color
Straps: Sliding winches mounted on the roadside track complete with straps and "D rings" to attach to curbside "J-hooks" for ease of operation
Splash Guards: 12 gauge steel mounted over tires in the road position complete with two rubber flaps
Bumper: Air-powered fold-away fixed bumper complies with National Under-ride Protection Standards
Mud Flaps: Two provided behind tandem
