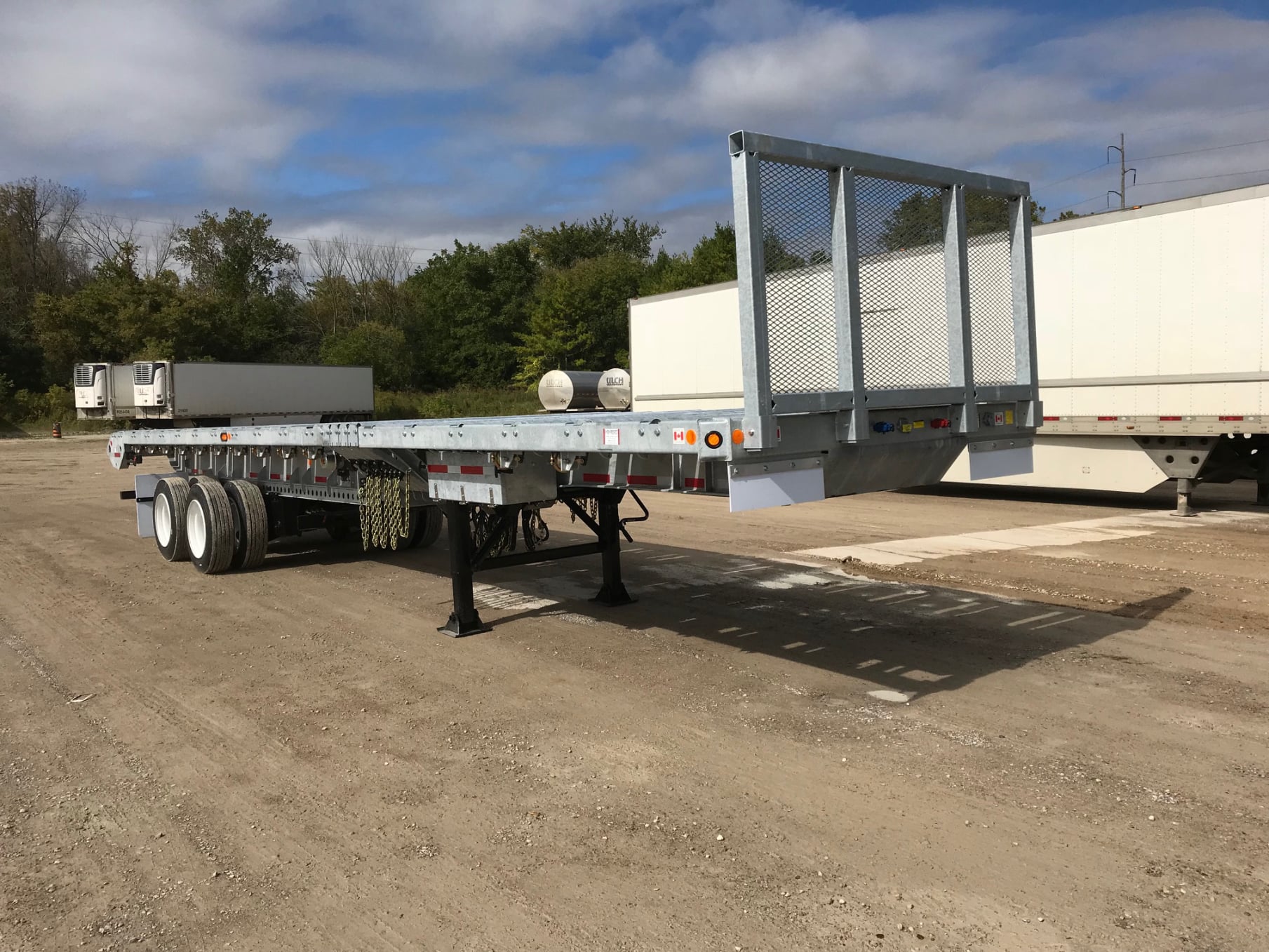

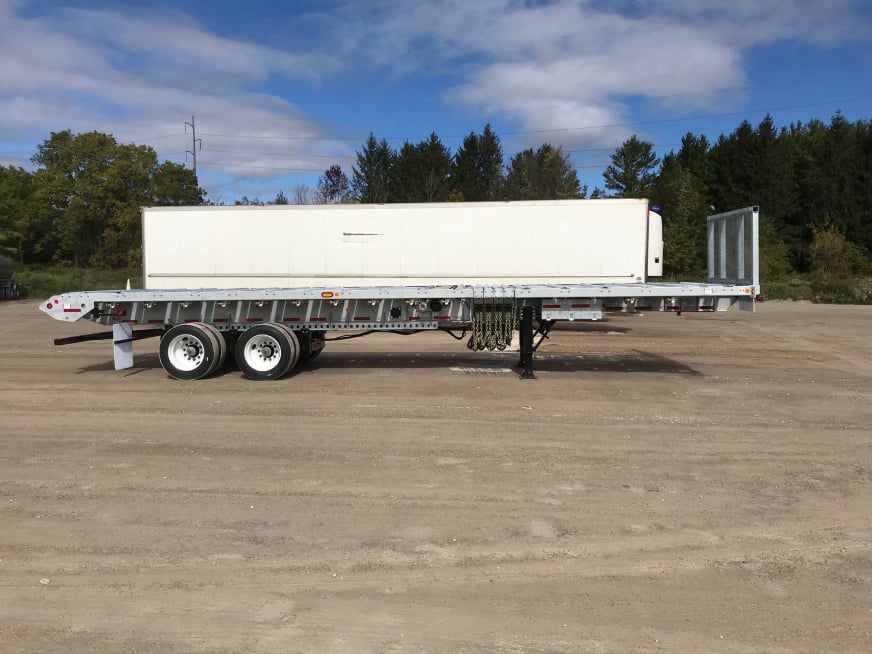

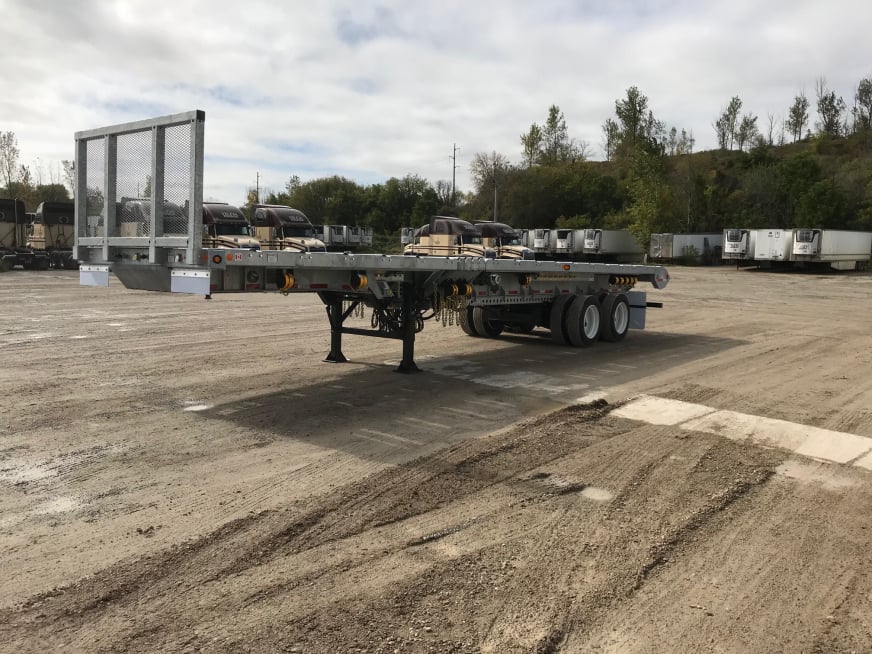

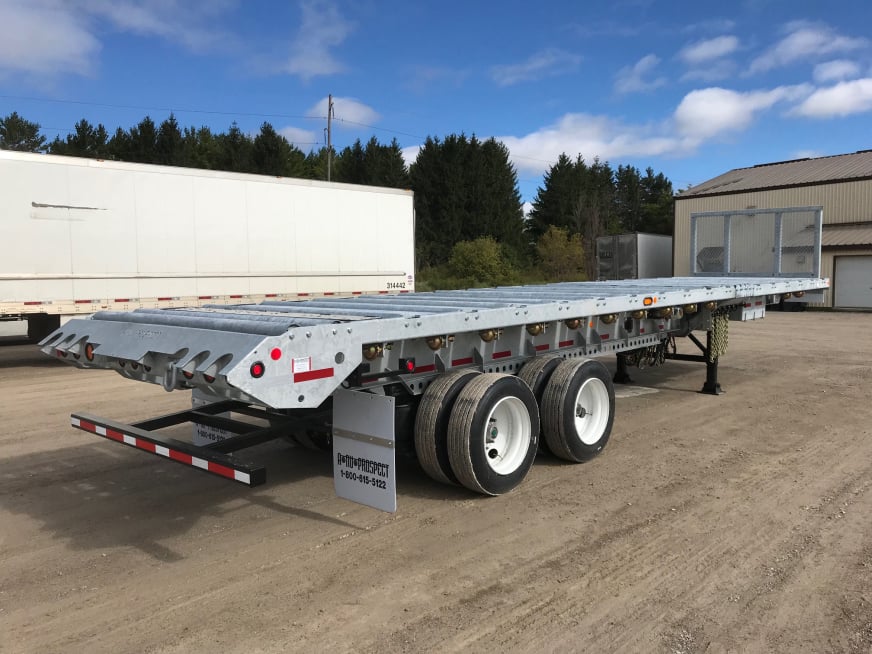

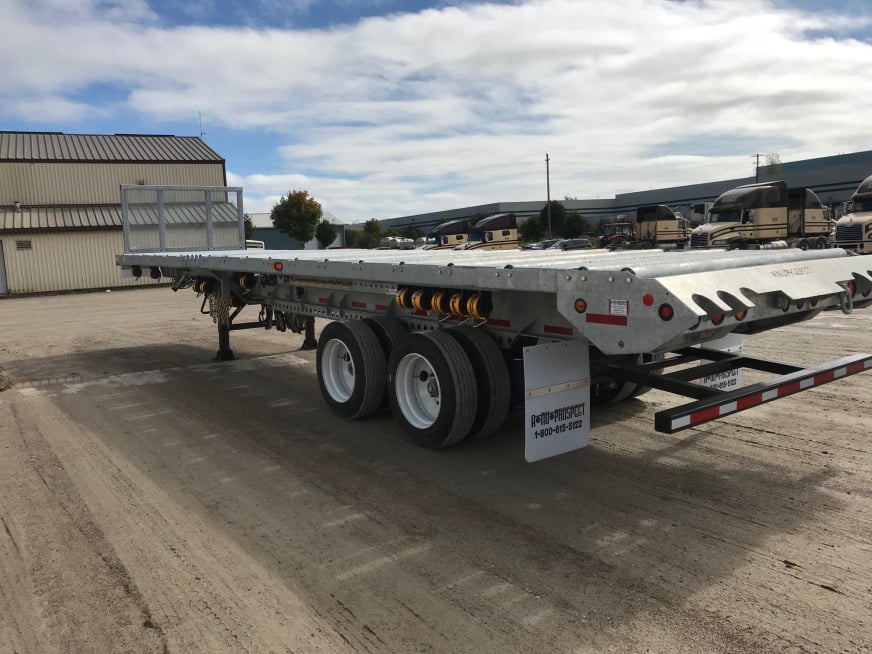

Fixed Length Roller Trailer

Trailer Specs

Dimensions:

Length: Available in 53' or 48'
Width: 102"
Height: 62" at front of deck
Weight: 16,000 lbs for 53'; 15,000 lbs for 48'; Gross Vehicle Weight Rating (GVWR) of 77,000 lbs

Under Carriage:

Axles: Dana D-22, 71" track, 5" diameter, 22,500 lb capacity, Haldex auto slacks
Wheels: 10 stud steel with outboard mount brake drums
Brakes: 16.5 x 7 x 3/4" Q-brake, CM-20 equipped with Anti-lock Brake System (ABS)
Air Chambers: Anchorlock 30-30
Suspension: Hutch H-9700 spring or Ridewell air ride tandem at 49" spread. Features air controlled suspension release for unloading
Tires: 11R 22.5 Goodyear G-114
Rims: 8.25 x 22.5 Accuride

Decking:

Cross Sills: 4" Jr. I beam at 12" on center (O.C.) complete with diagonal bracing
Outer Rail: 5 3/4" x 1/4" formed channel
Deck Plate: 11 gauge floor plate
Deck Rollers: 5" x 3/16" x 98 3/4" tube complete with 1/4" axles and 2-bolt flange bearings, 24" O.C., mounted 3/4" above outer rail, zinc plated

Additional Equipment:

Hydraulic Lift: Two 3.5" x 24" stroke double acting cylinders with 12 volt DC pump at 2 gallons per minute, onboard battery, 48" lift
Roller Locks: Air powered, 8 position ratchet style for quick and hands-free release
Controls: Mounted roadside at landing gear
Ground Rollers: Two 14" x 3/8" wall complete with 1 1/2" axles
Landing Gear: Holland MK-5, two speed, roadside crank
Main Beams: Fabricated "I" beams with 3/8" x 6" x 130,000 yield flanges and 3/16" webs
Lights: LED
Head Rack: Removable 48" x 96" complete with 1 1/2"-9 expanded metal
Paint: Sandblasted, primed, painted one color
Straps: Sliding winches mounted on roadside track complete with straps and "D rings" to attach to curbside "J-hooks" for ease of operation
Splash Guards: 12 gauge steel mounted over tires in road position complete with two rubber flaps
Bumper: Air powered fold-away fixed bumper complies with National Under-ride Protection Standards
Mud Flaps: Two provided behind tandem
